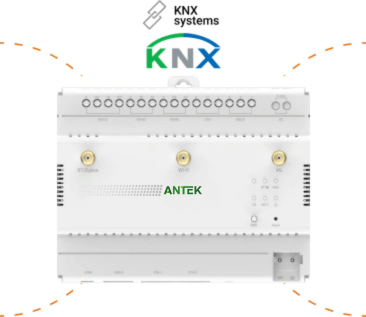

ATGW-510 KNX Zigbee Gateway (Wi-Fi/ Etherent/RS485/RS232/M-Bus/CAN)
ATGW-510 is a KNX IoT gateway that support KNX, Zigbee (Bluetooth optional), Ethernet, WiFi, LTE, RS485, RS232, M-Bus, and CAN interfaces. Therefore, it can collect data and issue commands through various methods. The KNX Zigbee gateway reserves expansion interfaces, which can externally expand IO and wireless modules, and can achieve various wireless or local bus interface functions. The product can be widely used in various automation scenarios such as smart buildings and smart homes.
● Hexa Core Processor (Dual-core ARM Cortex-A72 + Quad-core ARM Cortex-A53)
● Supports KNX protocol
● Supports ZigBee(Bluetooth Optional), RS485, RS232, M-Bus, CAN
● Supports LTE Cat 1/Cat 4, Wi-Fi 2.4G/5G, 2 RJ45 Gigabit Ethernet ports
● 4GB DDR3, 32GB eMMC
● Debian12, Ubuntu18.04, Android10.0, Buildroot+QT
● Rail Installation
- Description
- Reviews (0)
Description
verview of ATGW-510 KNX Zigbee IoT Gateway
KNX is a standard for building automation that allows various devices and systems within a building (like lighting, heating, security systems, etc.) to communicate with each other. ATGW-510 KNX IoT Gateway is the ultimate integration hub designed for modern automation environments. It can act as a protocol conversion gateway based on KNX Bus communication, and enables data exchange with devices of different protocols, including Zigbee, Bluetooth, M bus etc., enabling these devices to be controlled or monitored remotely or integrated with other systems to provide advanced functionality like automation and remote management for smart home application & building automation.
Features of ATGW-510 KNX Zigbee IoT Gateway
KNX standard datapoints (DPTs) support
KNX standard datapoints (DPTs) are supported, guaranteeing a simple KNX device/system integration.
Multi-Protocol Support
Supporting KNX, Zigbee, Wi-Fi, LTE, and more, the KNX Zigbee gateway connects diverse devices, creating a unified and streamlined network for various automation needs.
Embedded M-Bus level converter
An M-Bus level converter is embedded in the gateway, so no external one is required.
Programmable with Development Resources & Support
Easily port or independently develop KNX system, or modify and conduct secondary development on the underlying firmware based on the open-source SDK
Rail Installation & Expansion Module Support
Offer easy and efficient mounting on standard DIN rails while allowing for seamless integration of additional modules to expand wireless modules (Bluetooth, ZigBee, ZWAVE, etc) and rich I/O interfaces (RS485/RS232, switching input DI, switching output DO, analog input AI, analog output AO, thermal resistor PT100/PT1000/NTC, digital DI/DO, etc) capabilities and adapt to evolving KNX system needs.
Scalability and Customization
Scales with network growth, supporting more devices and protocols like KNX to Modbus, with customization options available through Antek’s development services.
Inner Board & Packaging of ATGW-510 KNX Zigbee IoT Gateway
Parameters of ATGW-510 KNX Zigbee IoT Gateway
| Category | Specifications |
|---|---|
| CPU | RK3399 Dual-core ARM Cortex-A72 Core processor and Quad-core ARM Cortex-A53 Core processor |
| System | Debian12, Ubuntu18.04, Android10.0, Buildroot+QT |
| RAM | 4GB DDR3 |
| Flash | 32GB eMMC |
| Power | ● DC 12V input ● Wide crimping capability for 5-30V input |
| Ethernet | 2 * 100/ 1000Mbps |
| USB | 2 * USB 3.0 |
| Debug | PCB support |
| Wireless protocol | ● WiFi 2.4G/5G ● Lte Cat1/Cat4 ● Wireless (optional): Choose one from Bluetooth, ZIGBEE or Z- WAVE |
| Antenna | ● WIFI x 1 ● 4G x 1 ● Wireless (optional) x 1 |
| KNX | Support |
| LED | ● Power LED: Always on when powered on, off when powered off ● WIFI LED: Always on when the module is in place, flashing when the terminal is connected, and off when the module is not in place ● Wireless(optional) LED: Always on when the module is in place, flashing when the terminal is connected, and off when the module is not in place – optional for ZigBee, Z-Wave, and Bluetooth ● LTE Signal LED: Always on when the module is in place, flashing when connected to the network, and off when the module is not in place ● KNX LED: The KNX terminal stays on when connected and turns off when disconnected ● Ethernet LED: Always on after Uplink and off after Down (yellow) |
| Interface | ● RS485 x 2 (Phoenix terminal) ● RS232 x 1(Phoenix terminal) ● M-Bus (3UL Max) x 1(Phoenix terminal) ● CAN x 1(Phoenix terminal) ● HDMI x 1 |
| SIM Slot | SIM Card Slot x 1 |
| Expansion Module | The left side of the product can be expanded with wireless modules (Bluetooth, ZigBee, ZWAVE), and the right side can be expanded with IO interface modules |
| Reset | Short press to restart the device, long press for 5 seconds to restore factory settings |
| Storage Temperature | -40℃~85℃ |
| Operating Temperature | 0~55℃ |
| Ambient Humidity | 10~90% |
| IP rating | IP30 |
| Cooling | Heat dissipation, silicone/ aluminum |
| Size | 118 * 90 * 58mm |
Applications of ATGW-510 KNX IoT Gateway
Specifically designed for a wide range of applications, the ATGW-510 KNX IoT gateway excels in scenarios, including:
