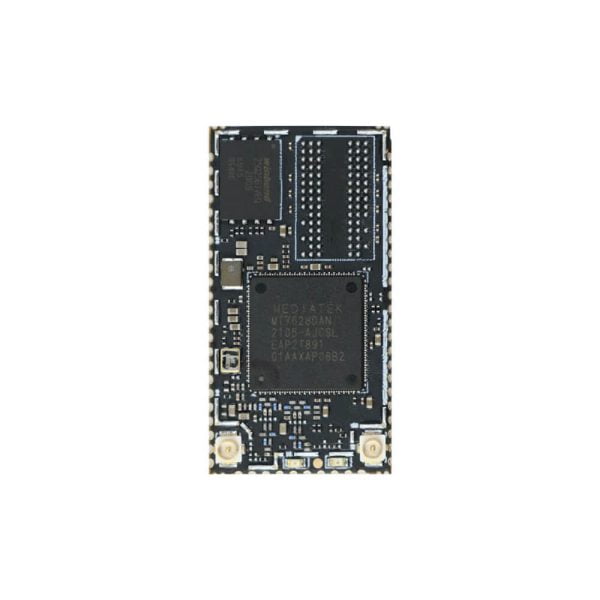

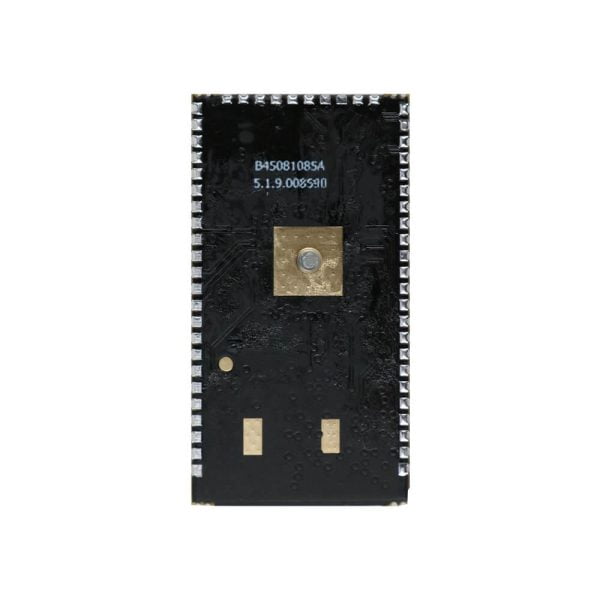

ATOM-080M MediaTek MT7628 System on Module
The ATOM-080M System on Module, produced by Antek Electronics, is a low-cost and low-power 300M IoT module based on MediaTek MT7628AN as the core.
● Super data processing capability, with an MCU main frequency of up to 580MHz
● 300M wireless rate; Support for 802.11b/g/n mode; 20/40 channel bandwidth
● Support for AP, STA, and AP/STA mixed mode
● Support for up to 5 10/100M adaptive network ports
● Multiple interfaces: SPI/SD-XC/eMMC
● Rich peripheral interfaces: SPI, I2C, I2S, PCM, UART, JTAG, GPIO
● Widely used in the Internet of Things
● Built-in powerful PMU; Built-in 64MB DDR2 (MTK7628DAN)
● Support for 16 Multiple BSSID; Support for QoS, WMM, WMM-PS
● Support for multiple encryption methods: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
● Support for multiple systems: Linux 2.6.36 SDK, OpenWrt 3.10
- Description
- Reviews (0)
Description
Quick View of ATOM-080M
The ATOM-080M is an advanced System-on-Module (SoM) developed by Antek, specifically designed to seamlessly integrate into a wide range of Internet of Things (IoT) applications.
Powered by the highly efficient MT7628 chipset, this compact module offers exceptional performance and versatility, making it an ideal choice for developers looking to create innovative and efficient IoT solutions. Equipped with a powerful 580 MHz MIPS 24KEc CPU, the ATOM-080M delivers robust processing capabilities, enabling it to handle complex tasks and data-intensive applications with ease. Its comprehensive connectivity options, including 2.4 GHz Wi-Fi, Ethernet, and UART, ensure seamless integration into various IoT ecosystems, allowing for efficient data transfer and communication.
This module provides access to all the interfaces of MT7628AN, supports Linux and OpenWrt operating systems, and allows for custom development. With its rich interfaces and powerful processors, it can be widely used in smart devices or cloud service applications.
The ATOM-080M System on Module offers a wide range of development documents and software resources that are both free and open-source. This convenience enables developers to enhance their development efficiency and shorten the development cycle.

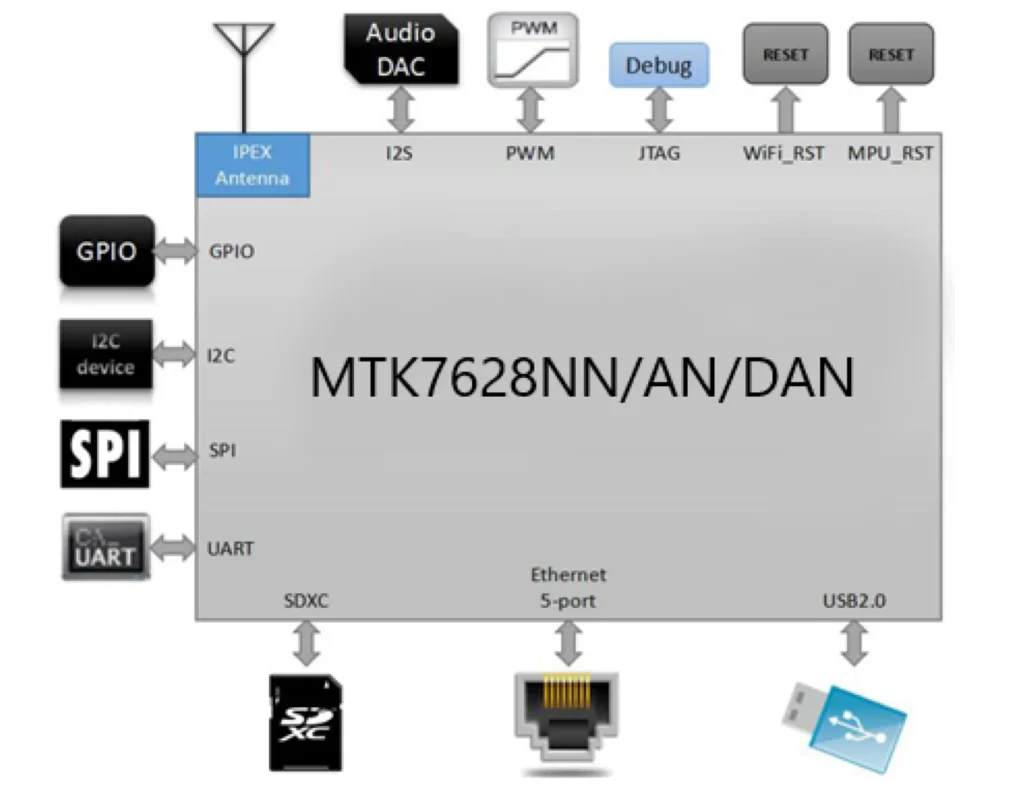

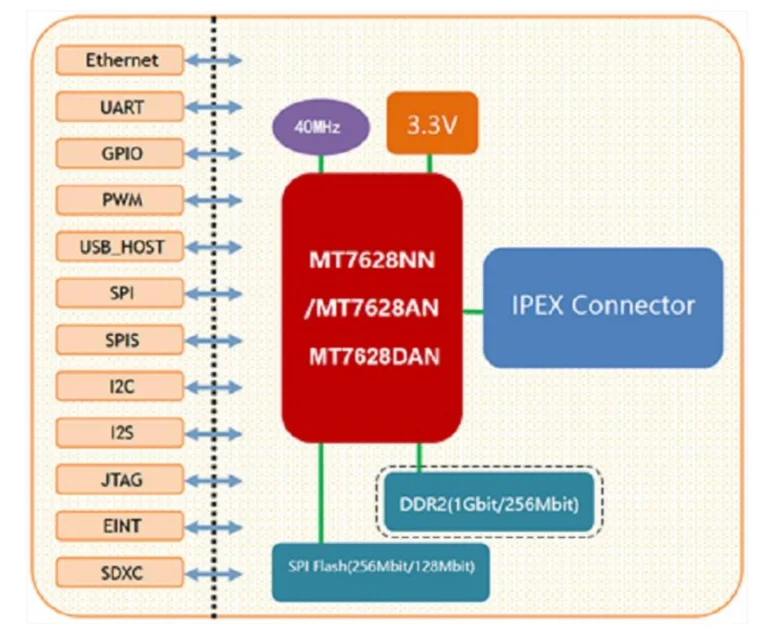

System Block Diagram of ATOM-080M System on Module

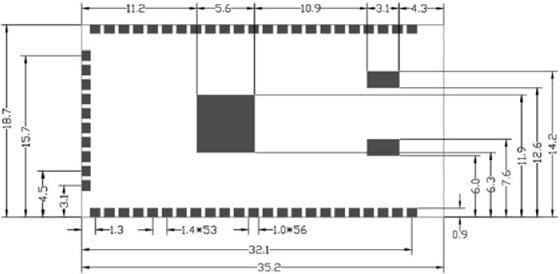

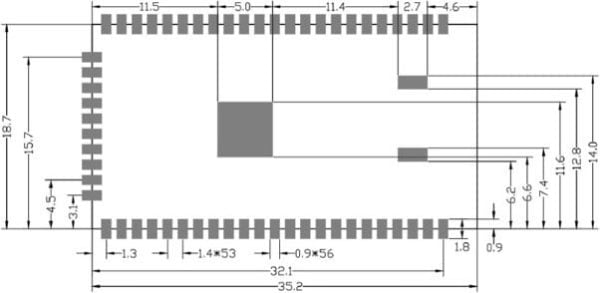

Dimensions of ATOM-080M MediaTek MT7628 SOM
Parameters of ATOM-080M SOM
| Mode | ATOM-080M |
| Man chip | MT7628AN |
| Kernel | MIPS24KEc |
| Frequency | 575/580MHz |
| RAM | DDR2 128MB, Optional 64MB |
| Flash | 16MB, Optional 32MB |
| Temperature | Working Temperature：-20℃~55℃ Storage Temperature：-40℃~85℃ |
| Humidity | 10~95% (Non-condensing) |
| Atmospheric pressure | 76Kpa ~106Kpa |
| Dimension | 18.7mm x 35.2mm x 2.8mm |
| Wi-Fi | 2 x IPEX Antenna (IEEE 802.11b/g/n) |
| Ethernet | 1 x WAN+4 x LAN(10M/100M) |
| UART | 2 x UART, With transparent transmission function |
| SDIO | 3 x SDIO interfaces |
| SPI | 1 x SPI interfaces |
| I2C | 1 x I2C interfaces |
| I2S | 1 x I2S interfaces |
| PWM | 1 x PWM interfaces |
| GPIO | Up to 8 GPIO interfaces |
| USB2.0 | 1 x USB 2.0 interfaces |
System on Module Application
Developer Resources of ATOM-080M
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | ATOM-080M Smart Programmable Module SDK Quick Start Guide v1.0.pdf | V1.0 |
| [Hardware Quickstart] | MT7628_Datasheet.pdf | V1.1 |
| [SDK] | ATOM-080M_sdk_AV1.0.0.0.tar.gz | V1.0.0.0 |
| [Firmware] | ATOM-080M_img_AV1.0.0.0.bin | V1.0.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Schematic] | node-red | |
| [Hardware Developmemt Guide] | MT7628AN Development Board Hardware Manual-V1.0 | |
Model List
| Model | DDR | Flash |
|---|---|---|
| ATOM-080M-Z | 64Mb | 32Mb |
| ATOM-080M-C | 128Mb | 32Mb |
